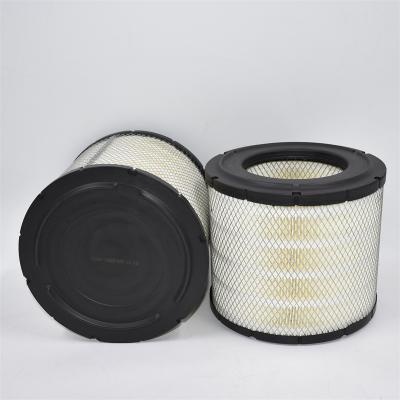

EE 812 Air Filter
EE-812 Premium Radial Seal Air Filter (Replaces 17801-78110)
Protect your high-performance diesel engine with the EE-812 Air Filter. Specifically engineered for the Hino 300 Series and Toyota Dyna/Dutro trucks, this filter provides a critical line of defense against dust, soot, and abrasive particles.
Built with a high-durability radial seal and advanced pleated media, the EE-812 ensures a leak-proof fit and maximum surface area for filtration. This allows your engine to "breathe" easier, resulting in better fuel combustion and significantly reduced engine wear over time.
Key Features:
Radial Seal Technology: Soft PU end caps provide a flexible, airtight seal that withstands heavy engine vibration.
Superior Dust Holding: High-capacity cellulose media traps microscopic contaminants to protect turbochargers and cylinders.
OEM Grade Construction: Engineered to meet or exceed the performance of the original factory filter.
Heat Resistant: Designed to maintain structural integrity even in the high-temperature environments of heavy-duty engine bays.
Verified Compatibility & Cross-Reference
The EE-812 is a direct replacement for the Toyota/Hino 17801-78110 part number and is cross-compatible with the following major filter brands:
Manufacturer | Part Number (Replaces) |
Hino / Toyota (OEM) | 17801-78110 / 17801-78120 |
Toyota | L1780-DL110 |
Sakura | A-13570 |
Donaldson | P634614 / R004304 |
Fleetguard | AF4210 / AF4211 |
Hifi Filter | SA 18127 |
Wix | WA10537 / 49457 |
Ryco | HDA5973 |
Wesfil | WA5252 |
JS Asakashi | A26031 |
Primary Vehicle Applications
This filter is a standard requirement for many Euro 4 and Euro 5 compliant light-to-medium duty trucks:
Hino 300 Series: (2011–Present) Models including 616, 617, 716, 717, 816, and 916 Hybrid.
Hino Dutro: XZU700, XZU710, XZU720, and XZU730 series (Engine N04C).
Toyota Dyna: 150 Series and 200 Series (XZU/XKU models).
Toyota Toyoace: Heavy-duty diesel variants.
Technical Specifications
Filter Type: Radial Seal Air Element (Soft End Cap)
Outer Diameter: 237mm1
Inner Diameter: 132mm2
Height: 216mm (H1) / 203mm (H2)
Pro Tip: For trucks operating in urban "stop-and-go" traffic or dusty construction sites, air filters should be checked every 5,000 km. A clean filter like the EE-812 can improve fuel efficiency by up to 10% compared to a clogged one.
