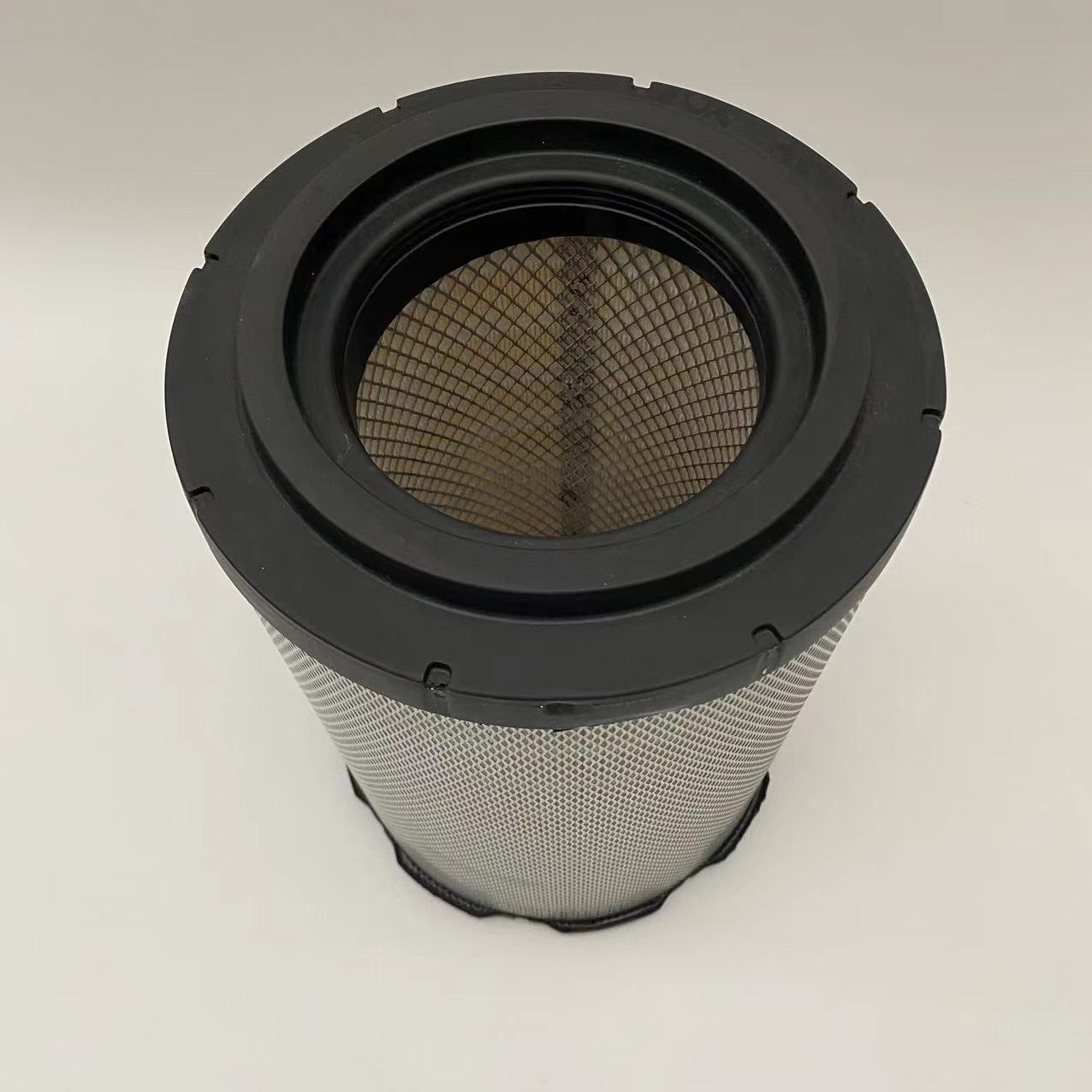

EE 803 Air Filter

EE-803 Heavy-Duty Air Filter (Replaces Hino 17801-1070)

The EE-803 Air Filter is a premium replacement designed for heavy-duty performance in commercial trucks and industrial equipment. Specifically engineered to match the Hino 17801-1070 standard, this cylindrical filter ensures your high-torque engine receives a constant supply of clean, debris-free air.

By utilizing high-density filtration media and reinforced structural support, the EE-803 protects your engine from the abrasive dust and particulates common in long-haul trucking and construction environments.

Key Performance Features:

• Industrial-Grade Filtration: Multi-stage media captures fine dust particles to prevent engine scoring and premature wear.

• High Airflow Capacity: Optimized pleat geometry reduces intake restriction, helping maintain fuel efficiency and horsepower.

• Durable Structural Mesh: Reinforced with an inner and outer steel mesh to prevent filter collapse under high-suction loads.

• Airtight Seal: High-quality PU (Polyurethane) soft-molded seals ensure no "dirty" air bypasses the filter element.

Verified Compatibility & Cross-Reference

The EE-803 is a direct replacement for the Hino 17801-1070 and is fully compatible with several other major manufacturer part numbers.

Primary Vehicle & Engine Applications

This filter is primarily utilized in Hino commercial trucks and buses, specifically those equipped with J08C and W04C engines.

• Hino Ranger Series: FD, FE, FF, FG, FT, FX, and FJ models.

• Hino Profia / Super Dolphin: Medium-duty and heavy-duty configurations.

• Hino Rainbow & Selega Buses: Models using J08C and J08C-T engines.

• Engines: Hino J08C (7.7L), J08C-T (Turbo), W04C-T, and F17D series.

Technical Specifications

• Filter Type: Cylindrical Air Filter Element

• Height: ~332mm – 344mm

• Outer Diameter: ~228mm

• Inner Diameter: ~126mm / 152mm
