EE 802 Air Filter

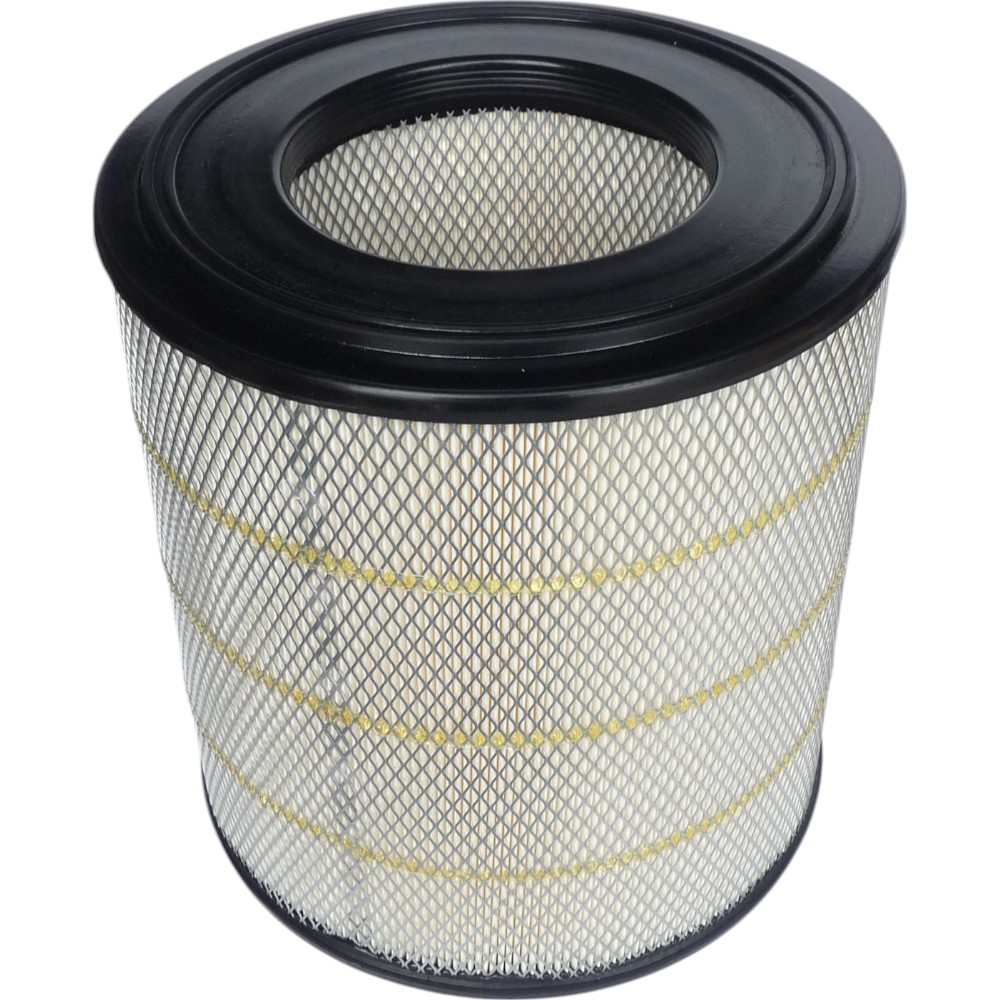

EE-802 Premium Heavy-Duty Air Filter

Protect your heavy-duty engine from the harshest environments with the EE-802 Air Filter. Specifically engineered for commercial trucks and industrial machinery, this high-capacity filter is a direct replacement for the Nissan 16546-NY015.

The EE-802 features an advanced micro-glass or high-density cellulose media designed to capture 99.9% of airborne contaminants—including fine dust, soot, and silica—before they can cause abrasive wear to your engine's cylinders and pistons.

Key Features:

• Industrial Grade Filtration: Built to handle high-volume air intake for large displacement diesel engines.

• Structural Integrity: Reinforced with a heavy-duty steel inner and outer mesh to prevent filter collapse under high-pressure suction.

• Superior Gasket Seal: High-quality rubber seals ensure a 100% airtight fit, preventing "dirty air" bypass.

• Long Service Life: Deep-pleat technology provides a larger surface area for maximum dirt-holding capacity.

Verified Compatibility & Cross-Reference

The EE-802 is a versatile heavy-duty filter used primarily in Nissan UD (Nissan Diesel) and Hino fleets. It is verified to replace the following manufacturer part numbers:

Primary Vehicle & Equipment Applications

This filter is a standard requirement for many Asian-manufactured heavy trucks and construction equipment:

• Nissan UD Trucks: Condor, Quon, and Big Thumb series (specifically models with FE6, GE13, or PF6 engines).

• Nissan Diesel Commercial: Often used in heavy-duty cranes and specialized industrial carriers.1

• Hino Trucks: Select 500 and 700 Series configurations.

• Industrial: Large diesel earthmoving excavators utilizing Nissan Diesel power plants.

Technical Specifications

• Filter Type: Radial Seal / Inner-Outer Element System

• Outer Diameter: Approx. 280mm

• Inner Diameter: Approx. 174mm

• Height: Approx. 374mm

Maintenance Tip: In heavy-duty applications, air filters should be replaced according to the restriction gauge readings or every 12 months. Operating with a clogged filter can significantly increase fuel consumption and exhaust temperatures.
