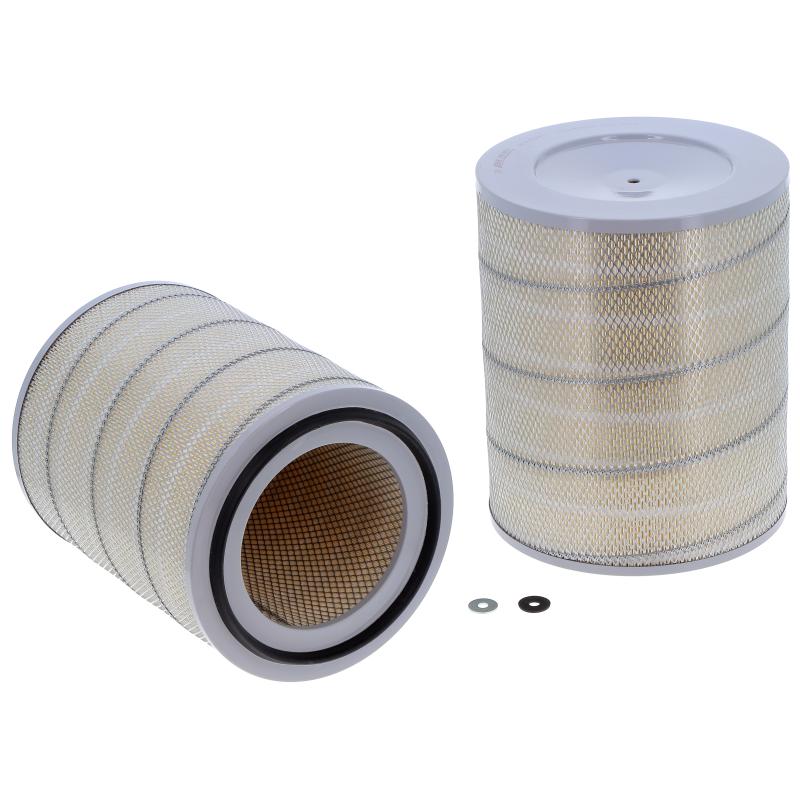

EE 536 Air Filter
EE-536 Heavy-Duty Air Filter (Replaces CH 12387)
Ensure your high-performance engine breathes clean with the EE-536 Air Filter. This premium filter insert is designed to meet the rigorous filtration requirements of heavy-duty industrial and commercial engines. It provides an airtight seal and high dust-holding capacity, preventing premature engine wear caused by airborne contaminants.
The EE-536 is a direct replacement for the Virgis CH 12387 and is engineered for use in demanding environments, including construction, long-haul transport, and agricultural applications.
Key Performance Features:
High Particle Retention: Advanced pleated media captures microscopic dust and debris while maintaining high airflow.
Structural Integrity: Reinforced design prevents media collapse under high-vacuum conditions.
Durable Seals: High-quality gaskets ensure a perfect fit within the air box, preventing unfiltered "bypass" air.
Engine Protection: Significantly reduces wear on cylinders, pistons, and valves by providing 99%+ filtration efficiency.
Verified Compatibility & Cross-Reference
The EE-536 (Replaces CH 12387) is a widely recognized part number across major European and global filtration brands.
Manufacturer | Part Number (Replaces) |
Virgis (OEM) | CH 12387 / CH12387 |
Volvo | CH12387 / 395557 |
Mann-Filter | C 30 703 |
Bosch | 1 457 432 188 (S 2188) |
Hengst | E218L |
Mahle / Knecht | LX 531 |
Donaldson | P771575 |
Wix | 42328E |
Filtron | AM 416 |
HIFI Filter | SA 14580 |
Fleetguard | AF4735 |
Major Vehicle & Equipment Applications
This filter is commonly utilized in heavy-duty trucks and industrial machinery from leading manufacturers:
Trucks: Volvo (Various models), DAF (Series 667078), IVECO, Scania (Series 395773), and Renault Trucks (50 21 107 501).
Agricultural & Industrial: Deutz-Fahr, JCB, Case IH, and New Holland equipment.
Engines: Fits various high-displacement diesel engines from MAN, Mercedes-Benz, and Magirus-Deutz.
Technical Specifications
Filter Type: Heavy-Duty Air Filter Insert (Cylindrical)
Height: ~380mm1
Outer Diameter: ~303mm2
Inner Diameter (Top): ~191mm3
Inner Diameter (Bottom): ~11mm (Bolt hole for mounting)
Maintenance Note: This air filter is often used in a "dual-stage" system. For maximum protection, we recommend checking the secondary/safety filter (Cross-reference: CF 1610) whenever you replace the primary EE-536 element.
