EE 510 Air Filter

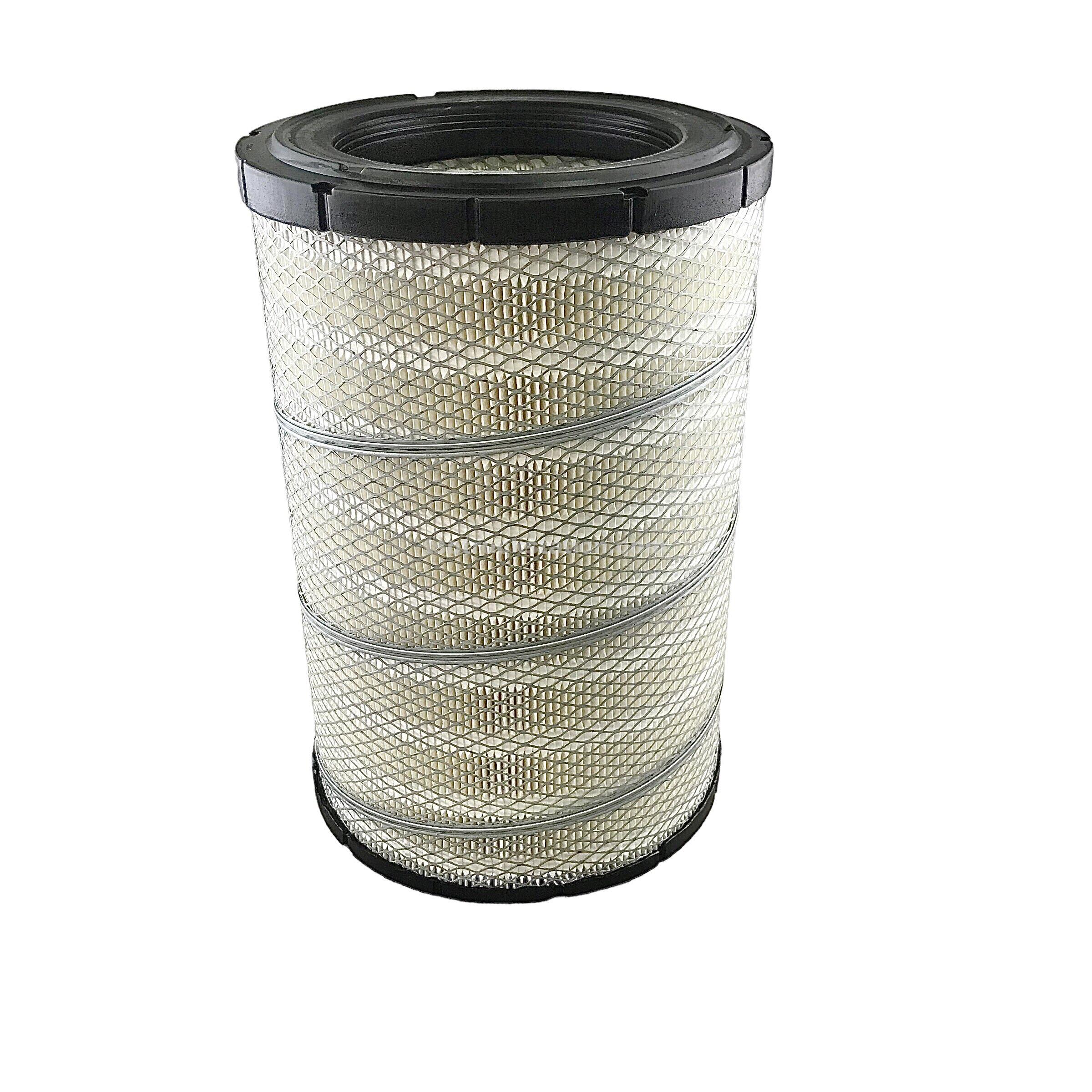

EE-510 High-Efficiency Air Filter
The EE-510 Air Filter is a premium, heavy-duty filtration solution designed to replace OEM part number 16546-99317. Built for large-scale diesel engines and commercial transport, this filter provides a high-flow intake while maintaining a 99% filtration efficiency rate.
By utilizing high-density pleated media and advanced Soft PU end caps, the EE-510 prevents dust, soot, and abrasive particles from entering the engine, significantly reducing internal wear and extending the life of your turbochargers and cylinders.
Key Performance Features:
Heavy-Duty Media: Industrial-grade paper core designed to handle high-vibration and high-torque environments.
Precision Seal: Soft Polyurethane (PU) end caps ensure a 100% airtight seal within the housing.
High Airflow: Optimized pleat spacing allows for maximum oxygen intake, supporting better fuel combustion and power output.
Versatile Fitment: Specifically designed for Nissan Diesel UD and Condor series trucks.
Verified Compatibility & Cross-Reference Guide
The EE-510 is a direct interchange for several major manufacturer part numbers. These have been verified for dimensions and filtration standards:
Manufacturer | Part Number (Replaces) |
Nissan (OEM) | 16546-99317 / 16546-99318 / 16546-99319 |
Nissan (OEM) | 16546-NY005 / 16546-NY006 / 16546-NY016 |
Nissan (OEM) | AY120-UD503 / AY120-UD505 |
Sakura | A-6123 (Primary) |
Donaldson | P526428 / P812305 |
Fleetguard | AF1862M |
JS Filter | A277J |
Wix | 46513 |
Primary Vehicle Applications
This filter is commonly used in heavy-duty Nissan and UD Trucks. Below are the specific series and engine types:
Nissan UD Truck / Tractor: CK, CW, CD, CG, and CF Series.1
Nissan Condor: CL, CM, CP, and PK Series.2
Nissan Diesel Bus: RA530 and EN Series.3
Engine Types: * RF8 / RF8T / RG8 (V8 Diesel)4
FE6 / FE6T / FE6E5
PF6T / NF6TA / MD92T
Technical Specifications (Verified):
Outer Diameter: 280 mm6
Inner Diameter: 172.5 mm
Height: 416 mm (approx. 428 mm with end caps)
Filter Type: Radial Seal / Soft PU Element
Maintenance Tip: For heavy-duty operations in dusty environments, check the restriction indicator on your air intake system. We recommend replacing the EE-510 every 12 months or according to your vehicle's service manual to avoid power loss and increased fuel consumption.
