EE 368 Fuel Filter

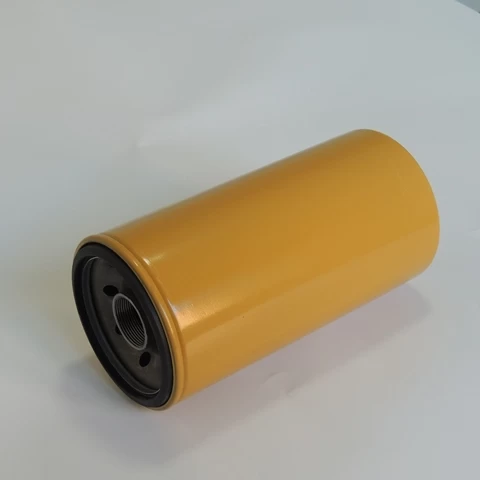

EE-368 High-Efficiency Oil Filter (Replaces CAT 5I-7950)

Maximize the protection of your heavy-duty machinery with the EE-368 Oil Filter. Specifically designed to replace the Caterpillar 5I-7950, this "Advanced Efficiency" spin-on filter is engineered to provide superior filtration for high-pressure lubrication systems.

Unlike standard filters, the EE-368 features a dual-flow design that ensures consistent oil delivery while capturing microscopic contaminants that cause engine wear. It is the ideal choice for operators of CAT excavators and industrial engines who require OEM-level reliability in demanding environments.

Key Performance Features:

• Advanced Efficiency Media: Specifically designed to trap and hold more contaminants, extending the life of your engine’s internal components.

• Dual-Flow Technology: Provides both full-flow and bypass filtration in a single canister for maximum oil cleanliness.

• Heavy-Duty Canister: Built with a reinforced steel housing to withstand extreme pressure spikes and high-vibration conditions typical of construction sites.

• Precision Seal: High-quality rubber gasket ensures a leak-proof fit even under high thermal expansion.

Verified Compatibility & Cross-Reference

The EE-368 is a direct replacement for the Caterpillar 5I-7950 and is fully interchangeable with the following industry-leading part numbers:

Primary Equipment Applications

This filter is essential for a wide range of Caterpillar machinery, particularly those powered by the 3064 and 3066 engine series:

• CAT Excavators: 311, 311B, 312, 312B, 312B L, 315, 320, 320L, 320B, 320B L, 320B N.1

• CAT Industrial Engines: 3064, 3066, and various 3000-series diesel configurations.2

• Track-Type Tractors: D3C III, D4C III, D5C III.

• Wheel Loaders: 910G, 910G II.3

Technical Specifications

• Filter Type: Lube Spin-on (Combination Full-Flow/Bypass)

• Outer Diameter: 108mm (4.25 inches)4

• Overall Height: 223mm (8.78 inches)5

• Thread Size: M32 x 1.56

• Gasket OD: 102mm (4.02 inches)

Important Note: While often referred to in the industry as a "fuel filter" in some older catalogs, 5I-7950 is officially classified as an Engine Oil Filter. For the matching fuel filter often used on the same CAT machines, see the 5I-7951.7
