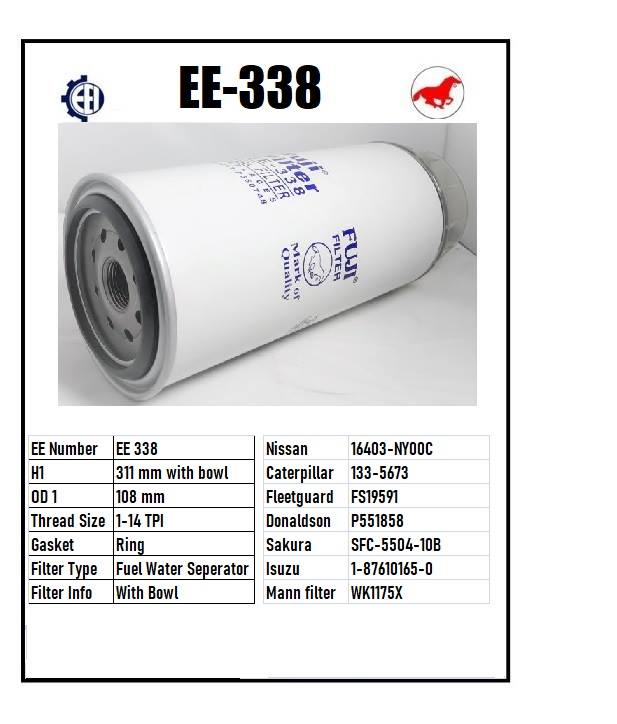

EE 338 Fuel Filter

EE-338 High-Efficiency Fuel Filter / Water Separator (Replaces R120T)

Protect your engine's fuel system with the EE-338 Fuel Filter, a high-performance replacement for the industry-standard Racor R120T. Designed for modern diesel engines, this filter serves as a critical line of defense, separating damaging water and solid contaminants from your fuel before they reach the injectors.

With its 10-micron filtration rating, the EE-338 strikes the perfect balance between high-flow capacity and superior protection, making it ideal for both marine and heavy-duty industrial applications.

Key Performance Features:

• Aquabloc® Technology Equivalent: Engineered with water-repelling media that causes water to coalesce into large droplets, which safely settle in the collection bowl.1

• 10-Micron Precision: Captures microscopic particles to prevent injector wear and fuel system corrosion.

• Spin-On Convenience: Features a 1"-14 thread for easy installation and a high-quality seal to prevent air leaks in suction-side applications.

• Durable Steel Canister: Built to withstand the high-pressure and high-vibration environments of commercial diesel engines.

Verified Compatibility & Cross-Reference

The EE-338 is a direct replacement for the Parker Racor R120T and is compatible with the 400 and 600 Series filter assemblies.

Primary Vehicle & Equipment Applications

This filter is a staple in the maintenance of medium-duty trucks, marine vessels, and construction equipment:

• Trucks: Isuzu Forward/N-Series, Hino, and GMC W-Series.

• Construction & Power: Caterpillar excavators and John Deere agricultural machinery.

• Assemblies: Fits Racor 4120R, 6120R, and 120 Series fuel assemblies.

Technical Specifications

• Filter Type: Spin-On Fuel/Water Separator

• Micron Rating: 10 Micron2

• Overall Height: 218mm (approx. 8.6")

• Outer Diameter: 111mm (approx. 4.4")3

• Thread Size: 1"-14 UN4

• Bowl Thread: 3 3/4"-10 UN (for clear or metal collection bowls)5

Maintenance Tip: For optimal performance, drain the collection bowl daily to remove trapped water and replace the EE-338 element every 500 hours or 10,000 miles to prevent power loss from clogging.
