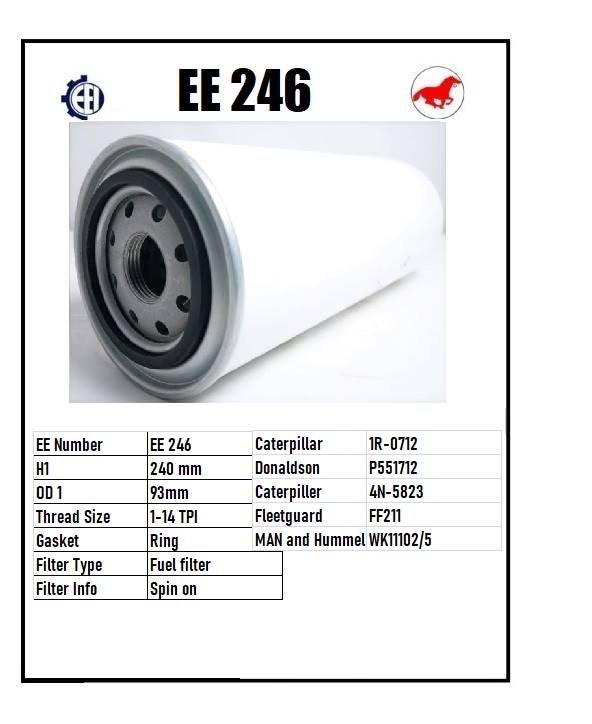

EE 246 Fuel Filter

EE-246 Heavy-Duty Fuel Filter

Safeguard your engine’s fuel system with the EE-246 Fuel Filter. Designed as a direct replacement for the industry-standard Caterpillar 1R-0712, this filter provides advanced protection against contaminants, ensuring your heavy-duty equipment and trucks run smoothly.

The EE-246 is engineered to trap microscopic abrasive particles before they can damage your sensitive fuel injectors and pumps. It is an essential component for maintaining the performance of Caterpillar engines and other diesel powerplants.

Key Features:

• Advanced Filtration: High-efficiency media removes particles (down to 10-15 microns) to prevent fuel system wear.

• Rugged Durability: Heavy-duty metal canister designed to withstand high pressure and vibration.

• Leak-Free Seal: Premium gasket ensures a tight seal, preventing fuel leaks and air ingress.

• Direct Fit: Exact replacement for 1R-0712 and 1R-0749 (verify height requirements) for easy spin-on installation.

Compatibility & Cross-Reference Guide

The EE-246 is a "Secondary Fuel Spin-On" filter widely used in the industry. It replaces part numbers from major brands including Caterpillar, Baldwin, and Fleetguard.1

Vehicle & Engine Applications

This filter is primarily designed for Caterpillar engines found in a wide range of equipment and on-highway trucks.

Common Engines:

• Caterpillar 3300 Series: 3304, 3306

• Caterpillar 3400 Series: 3406, 3408, 3412

• Caterpillar C-Series: C9, C10, C12, C15, C18

Common Equipment:

• Excavators: 235, 245, 330, 350, 375 Series

• Wheel Loaders: 950, 966, 980, 988 Series

• Bulldozers: D6, D7, D8, D9, D10 Series

• Trucks (On-Highway): Kenworth, Peterbilt, Freightliner, and International trucks equipped with CAT engines.

Technical Specifications

Tech Note: This is typically a Secondary fuel filter, meaning it is installed after the primary fuel/water separator. Do not pre-fill this filter with fuel before installation unless specified by your manual, as pouring unfiltered fuel into the center tube can bypass the filter media and damage injectors.
